Mold Repair Laser Welding Machine

Product Name Mold Repair Welding Machine Laser Type YAG Laser wavelength 1064nm

Commodity name： Mold Repair Laser Welding Machine

Category:

Mold Laser Welding Machine

E-mail:

info@udibomfg.com

Message

E-mail

Product Description

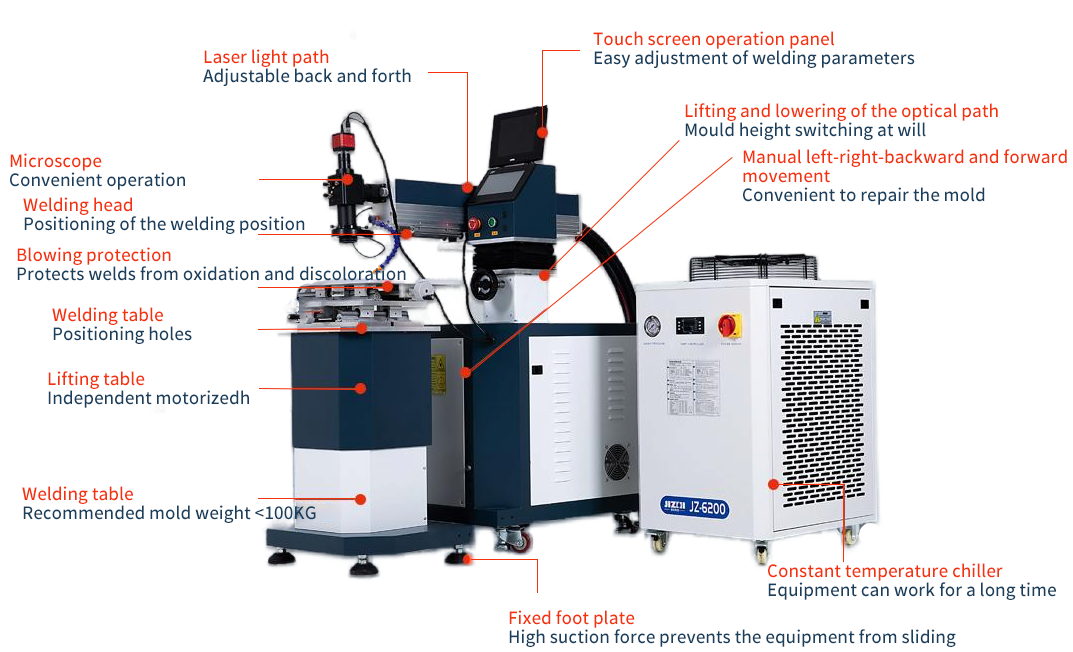

Detail Display

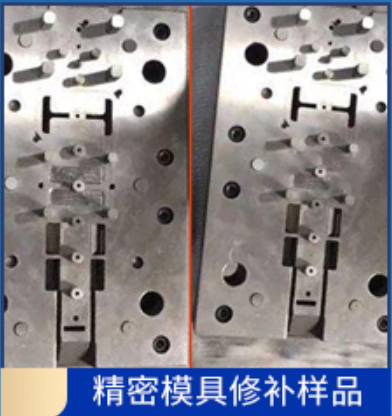

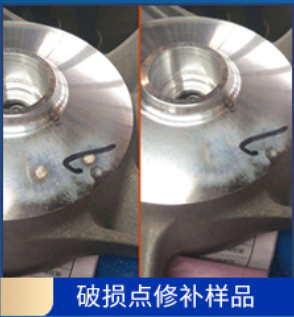

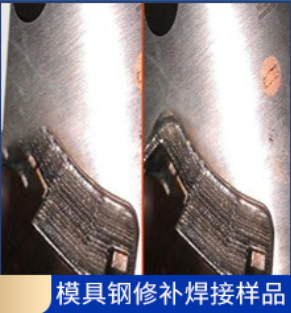

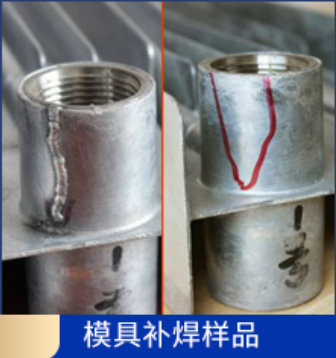

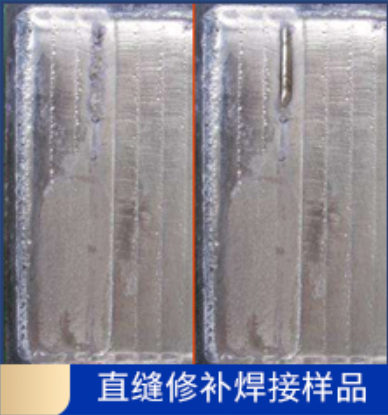

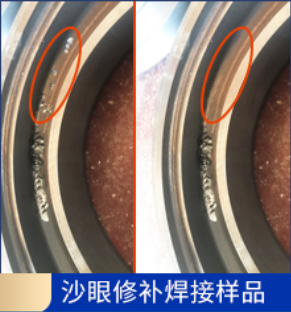

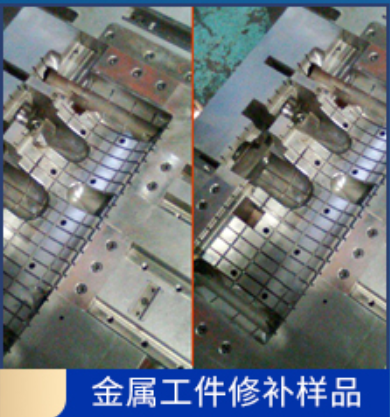

Usage Effect

Product Name	Mold Repair Welding Machine
Laser Type	YAG
Laser wavelength	1064nm
Welding Form	Butt welding
Welding depth	0.1-0.3mm
Protective gas	Xenon
Cooling method	water cooling
Pulse width	<20m/s
Machine size	13512060CM
Power Requirement	220V/single-phase 380V/three-phase ±5 per cent

Product Name	Mould Repair Welding Machine
Model	MJ-WY200	Rated Voltage	380V
Laser Type	1064NM	Output power	200W
Spot Adjustment Range	0.1-0.3MM	Optical spot size	0.2-3.0MM
Laser output focal length	80MM/100MM/120MM	Pulse width	≤20MS
Pulse frequency	≤50HZ	Cooling mode	Water cooling
Observation system	CCD microscope vision system	Protective gas	1 way (argon)
Optical path can be raised and lowered	150MM（Manual lift）	Cavity	Single lamp/double lamp
Laser frequency	0--100HZ	Laser type	ND:YAG pulse
Table load capacity	200kg	Consumables	welding wire, argon gas, protective lenses
Welding wire diameter/WIREDIAMETER	0.1MM-0.6MM
Cavity life	Theoretical service life 8-10 years

A mold repair laser welding machine is a highly specialized and innovative piece of equipment that has revolutionized the field of mold maintenance and repair.

The hallmark feature of our mold repair laser welding machine is its exceptional precision. Utilizing advanced laser technology, it can deliver a focused beam of energy with micron - level accuracy. This level of precision is crucial when dealing with molds, as they often have intricate geometries and fine details. Whether it's repairing a tiny crack in a complex - shaped mold cavity or building up worn - out areas, the laser welding machine can target the specific area with utmost accuracy. This ensures that the repair work does not affect the surrounding areas of the mold, preserving its original dimensions and surface finish.
