Small-Size Handheld Laser Marking Machine

Intelligently manage your marking process, from the workshop to the automated production line, so that you can easily complete multiple tasks.

Commodity name： Small-Size Handheld Laser Marking Machine

Category:

Handheld Laser Marking Machine

E-mail:

info@udibomfg.com

Message

E-mail

Product Description

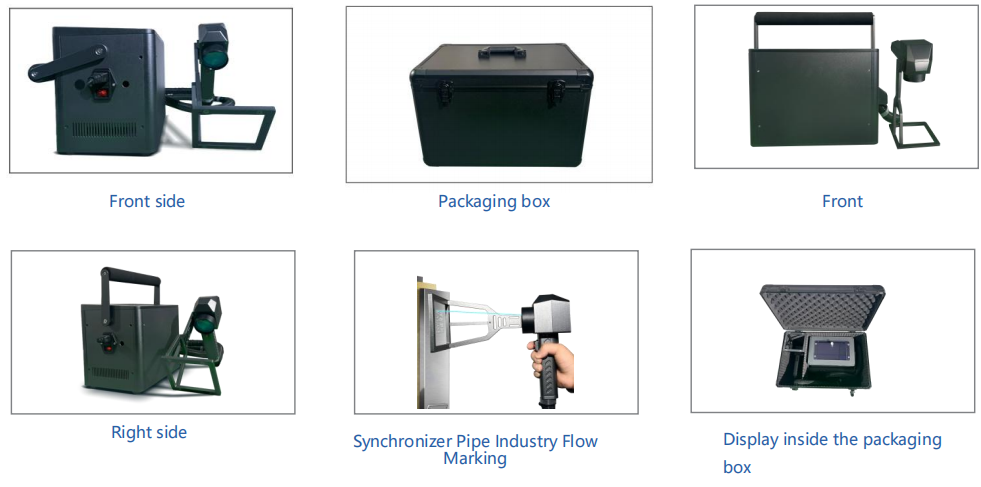

Detail Display

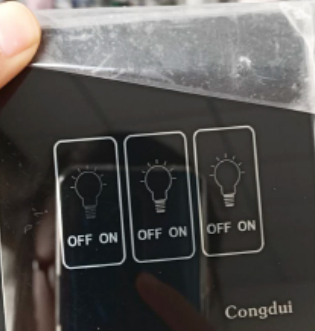

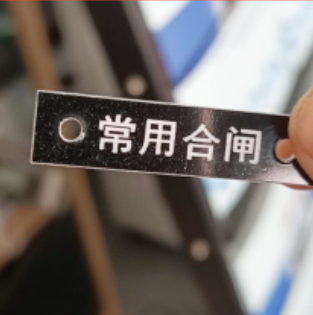

Usage Effect

Endless possibilities and technical advantages:

Intelligently manage your marking process, from the workshop to the automated production line, so that you can easily complete multiple tasks.

Built in battery design

24V lithium battery (optional), 12Ah high capacity battery

Portable design, multiple uses

Portable + desktop(optional)+ flight design (optional)suitable for a variety of occasions

Configure Linux system

8-core processor with high configuration security Stable performance, fast response,not easy to be poisoned and down

All aluminum body, precise and compac

The weight of the whole machine is 8. 25kg, and the marking head is only 1.25Kg.
Ergonomic design, comfortable to hold and easy to operate

The main technical parameters of the light brazing series：

Items	Products Parameter	F-20W	F-30W
Overall characteristics	Material of complete machine	Sand blasting oxidation all aluminum structure
	Laser	The service life of fiber laser generator is more than 100000 hours
	Laser wavelength	1064nm
	Actual output power	≥20W	≥30W
	Marking speed	≤12000mm/s
	master control	8 inch touch controller
	Cooling system	Normal temperature air cooling
	Minimum line width	0.0012mm
	The precision of re-positioning	0.003mm
	The range of Marking	75mm75mm or 12075mm (or Customized sizes)
	Positioning Mode	Red light positioning.
	Number of lines of engraved characters	Within the marking range Any number will do
	Production line speed	0 ~ 130m / min (depending on the material)
Sofeware introduction	Multilingualism	English, French, Spanish, German, Chinese, Russian, Arabic, etc
	Operation authority	Multi user management authority
	operating system	Linux system
	Inkjet mode	Static, analog and encoder. Three printing modes
	Reserved signal	Start printing, printing status, printing completion, fault alarm
	data protection	With power-off data protection function
	Missing print monitoring	False triggering due to material reflection, providing overspeed alarm function
	Remove intersections	Automatically remove intersection points to avoid overlapping
	Coding software	It can realize single and dual code sending
Compatible format.	typeface	Chinese, English, digital, traditional and other standard font
	file format	BMP/DXF/HPGL/JPEG/PLT
	bar code	Code39, code128, code126, QR, Zhizhi code (optional)
Machine Parameter	Power Supply	Standard configuration: external power supply 220V / 50Hz
	Power consumption	200W
	Net machine weight	Handheld case: 7kg, handpiece: 1.25Kg, total weight after carton packaging: 8.25kg
	Overall dimensions	Case: 312237.8185mm, hand-held head: 24598.7189mm, packing case: 510325410mm
	Battery endurance	Optional: built in battery: 12000ma normal use time 12-16 hours
Envirement	requirement	External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration

Item Model	MJ-GX-10/20/30/50
Laser Power	10W/20W/30W/50W
Laser wavelength	1064nm
Laser Type	fibre
Operation mode	photoelectric conversion
Minimum characters	>0.1mm
Running speed	12500mm/s
Cooling method	Built-in air cooling system
Power requirements	220V/50Hz
Running Temperature	-5℃-45℃
