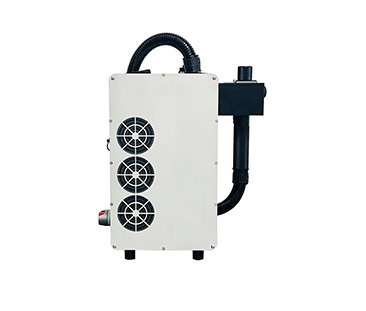

100 Watts Pulsed Carrying Case Laser Cleaning Machine

A.Compact design B.Ultra-light and portable C.Adjustable parameters and modes D.Low maintenance cost E.High safety with safety lock and independent light out control

Commodity name： 100 Watts Pulsed Carrying Case Laser Cleaning Machine

Category:

Portable / Handheld Laser Cleaning Machine

E-mail:

info@udibomfg.com

Message

E-mail

Product Description
Detail Display
Usage Effect

Model Features：

A.Compact design
B.Ultra-light and portable
C.Adjustable parameters and modes
D.Low maintenance cost
E.High safety with safety lock and independent light out control

Model	UDCL-100-H
Beam Type	Gaussian beam	Cleaning width	F160(100100mm)/F254(150150mm) F330(200200mm)/F420(300300mm)
Laser Wavelength	1064nm	Control system	embedded system
Laser Power	100W	Weight	30KG
Weight	≤0.7 KG	Machine size	710X270X537mm
Head Size	2326785 mm	Rated power consumption	0.8KW
Head Form	Vertical Output	Cooling mode	air cooling
Output Mode	2D Matrix	Working environment	Temperature: +5°C~+45°C, Relative humidity: <80% (no condensation)

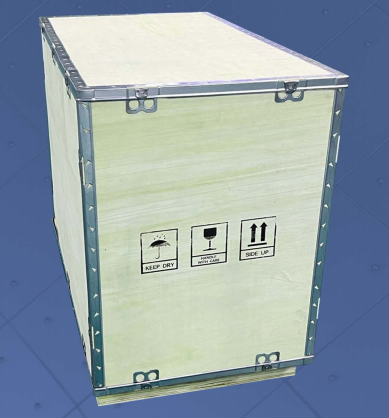

Packaging

Packaging material	Quick Seal Film + Wooden Case
Gross Weight	Approx. 42 KGS
Packaging Size	790mmx475mmx770mm

Introducing the 100 Watts Pulsed Carrying Case Laser Cleaning Machine, a breakthrough in portable surface cleaning technology. Designed for mobility and industrial-level performance, this machine is ideal for on-site cleaning of rust, coatings, oil stains, and oxides across a wide range of industries.

Compact Design & Ultra-Light Portability
Packaged in a rugged carrying case, this machine combines durability with ease of transport. The compact footprint and built-in handle make it easy to deploy on site without heavy lifting or extensive setup. The ultra-light, portable form factor allows operators to bring laser-level cleaning power to remote locations, factory floors, or field service jobs.

Adjustable Parameters and Cleaning Modes
Equipped with multiple cleaning modes and parameter adjustment options, this machine enables precise configuration to match the material and surface condition being treated. Whether it’s fine debris removal or bulk rust stripping, users can optimize the pulse frequency, scanning width and cleaning mode for best results.

Low Maintenance Cost
With no need for blasting media, chemicals or consumables, maintenance requirements are minimal. The laser source is long-life, the compact unit design simplifies servicing, and downtime is reduced, resulting in lower total cost of ownership.

High Safety Features
Safety is built in. The machine includes a safety lock feature and independent light-out control to prevent accidental emission. These safeguards make the system suitable for industrial environments where operator safety and process control are critical.

Applications
Ideal for sectors such as automotive, shipbuilding, electronics, mold manufacturing and construction, this laser cleaning machine excels at removing weld spatter, rust on structural components, old paint layers, oxide skins and preparation of surfaces for bonding or coating.

In summary, the 100 W pulsed carrying-case laser cleaning machine brings together portability, precision, durability and safety into one compact package—enabling efficient surface preparation and cleaning wherever your job takes you.
