100 Watts Pulsed Laser Cleaning for Lithium Ion Battery Backpacks

A4 paper size, easy to carry Backpack design, weight only 13.5KG Built-in lithium battery, no need for power cord Equipped with power display, real-time feedback consumption 6 cleaning graphics can be switched, adjustable parameters Mini cleaning head, one-handed operation, not tired of holding for a long time

Commodity name： 100 Watts Pulsed Laser Cleaning for Lithium Ion Battery Backpacks

Category:

Backpack Laser Cleaning Machine

E-mail:

info@udibomfg.com

Message

E-mail

Product Description
Detail Display
Usage Effect

Model Features：

A4 paper size, easy to carry
Backpack design, weight only 13.5KG
Built-in lithium battery, no need for power cord
Equipped with power display, real-time feedback consumption
6 cleaning graphics can be switched, adjustable parameters
Mini cleaning head, one-handed operation, not tired of holding for a long time

Model	UDCL-100-B

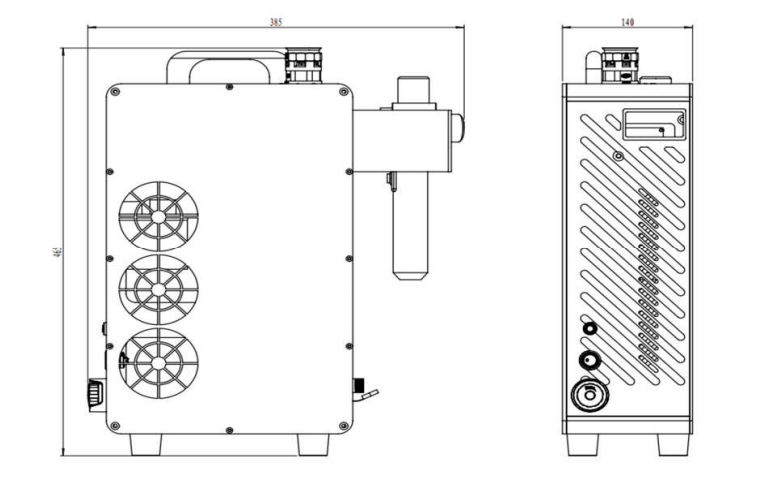

Size	385mmx140mmx465mm
Net Weight	13.5 KG
Laser Type	Nanosecond pulse single mode
Laser Wavelength	1064 nm
Average Power	100 W
Rated Power Consumption	0.5 KW ·H
Repetition Frequency	20~200 KHZ
Pulse width	150~190 ns
Maximum single pulse energy	1.6 mj
Cooling method	air cooling
Fiber Length	1.5 m
Power cord length	3 m
Power Requirement	DC 24 V
Battery Life	≥1.5 hrs
Laser Protection Rating	Level 4

Model	UDCL-100MW-2CC1
Laser	Q-tuned fibre pulsed lasers
Wavelength	1064nm
Rated Average Power	100W
Repetition Frequency	20～200kHz
Maximum single pulse energy	1.6mJ
Pulse width	150～190ns
Scanning width	0～20mm(adjustable)
Cleaning scan length	0～100mm(adjustable)
Power Requirement	DC 24V
Rated power consumption	500W
Weight	13.5Kg
Equipment size	465×140×385mm
Cleaning head weight	0.7Kg
Output fibre length	1.5m
Cooling mode	air cooling
Ambient temperature	+0C～+40℃
Ambient Humidity	≤70%

Packaging

Packaging material	Quick Seal Film + Wooden Case
Gross Weight	Approx. 22 KGS
Packaging Size	485mmx240mmx665mm

Introducing a highly mobile, high-precision cleaning solution designed for demanding industrial environments: the 100 Watts Pulsed Laser Cleaning Backpack. This compact unit is built in a sleek A4-paper size chassis, making it effortless to carry on site. Weighing only 13.5 kg, the backpack design gives operators full mobility and flexibility—no heavy bench installation required.

Equipped with a built-in lithium battery, this handheld unit eliminates the need for cumbersome power cords, enabling cordless operation for at least 1.5 hours of continuous use. A real-time power display keeps operators informed of current consumption and battery status, enhancing safety and workflow efficiency.

The device features six selectable cleaning graphic modes and adjustable parameters, allowing users to fine-tune the laser cleaning process to match specific surface conditions or contamination types. The miniaturised cleaning head is ergonomically designed for one-handed operation—eliminating fatigue during lengthy cleaning sessions. With a nanosecond pulse single-mode laser at a wavelength of 1064 nm and an average power of 100 W, the system delivers precise, high-energy pulses for efficient material removal, oxidation cleaning or degreasing of battery packs and related components.

Ideal for applications in the lithium-ion battery industry, electronics manufacturing, mold cleaning, automotive components and other advanced manufacturing sectors, this portable laser cleaning unit combines top-tier performance in a lightweight, fully mobile package—giving you the flexibility, accuracy and uptime required for modern production and maintenance operations.
